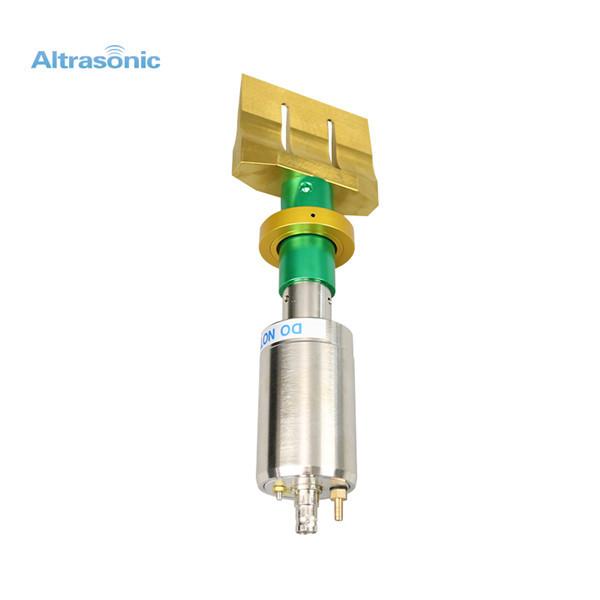

40khz Ultrasonic Cutting Device with Titianium Blade for Rubber Product No Deformation
Description:
The principle of ultrasonic rubber cutting knife totally different from the traditional sense of the cutting. By using ultrasonic energy, the material will be cut by locally heating, so as to achieve the purpose of cutting the rubber. Ultrasonic cutting does not require a sharp edge and don’t need a lot of pressure, so it will not cause damage of vulcanization.
Ultrasonic cutting advantage and features:
1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.
Specification:
| FREQUENCY | 40Khz |
| POWER | 500W 800W |
| INPUT | AC110-240V, 50/60Hz |
| POWER CONTROLLER | stepping or continuous |
| MATERIAL OF CUTTING HEAD | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| MACHINE WIGHT | 4 kg-16KG |
| ACCESSORIES | foot switch, additional blade |
| COOLING DEVICE | compressed air mouth can be installed. |
| CABLE LENGTH | 2M or customized |
| FOOT SWITCH | available |
Applications:
1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting

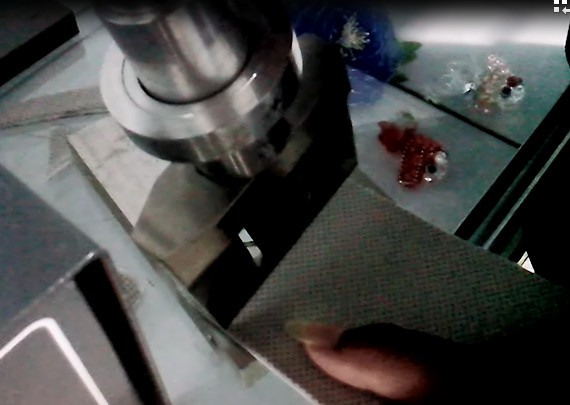

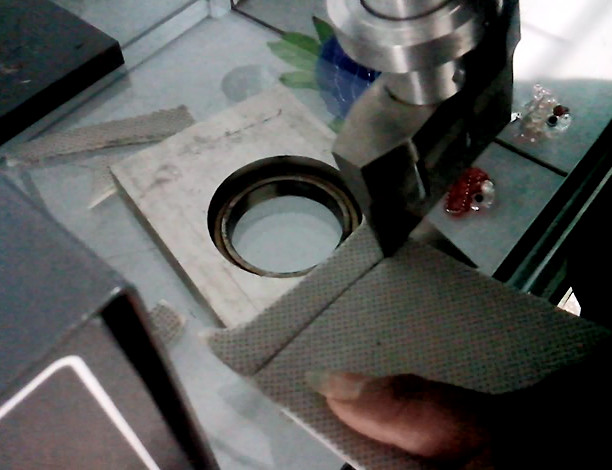

Product display
